Sanding machine series

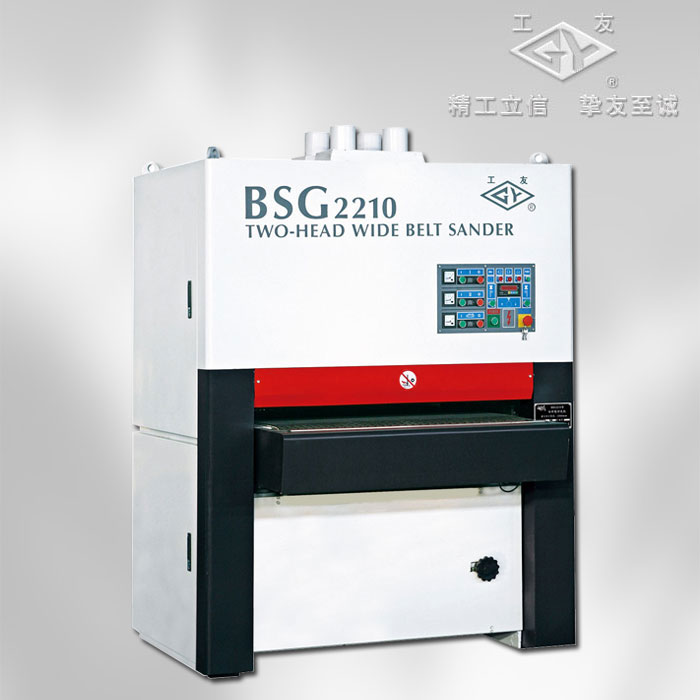

BSG2106 BSG2210 BSG2213 Wide-belt Sanding Machine
BSG2106 BSG2210 BSG2213 Wide-belt Sanding Machine
Technical Specification Unit BSG2106 BSG2210 BSG2213
Max.sanding width mm 630 1000 1300
Max.Sanding thickness mm 110 110 110
Min.Sanding length mm / 200 200
Sand belt speed(Group1) m/s / 20 20
Sand belt speed(Group2) m/s / 16 16
Sand belt size mm 2040×650 1020×2000 1330×2200
Motor total power kW 20.25 30 55
Motor for sand belt Group1 kW / 15 30
Motor for sand belt Group2 kW / 11 22
Motor for conveyer belt kW / 1.5 4
Feeding speed m/min 5-30 5-25 1-30
Compressed air pressure MPa /
>0.55 >0.55
Air speed for dust collector pipe m/s / ≥25 25
Table lifting motor kW /
/ 0.37
Brushing roller motor kW / / 0.37
Consumption of compressed air m3/min / / 1.35
Air flow of air blower for dust collector m3/h / / 7900
Overall dimensions mm 2067×1100×1905 / 2230×1950×2260
Net.weight kg 1800 2000 2800
