Multiple function combination machine series

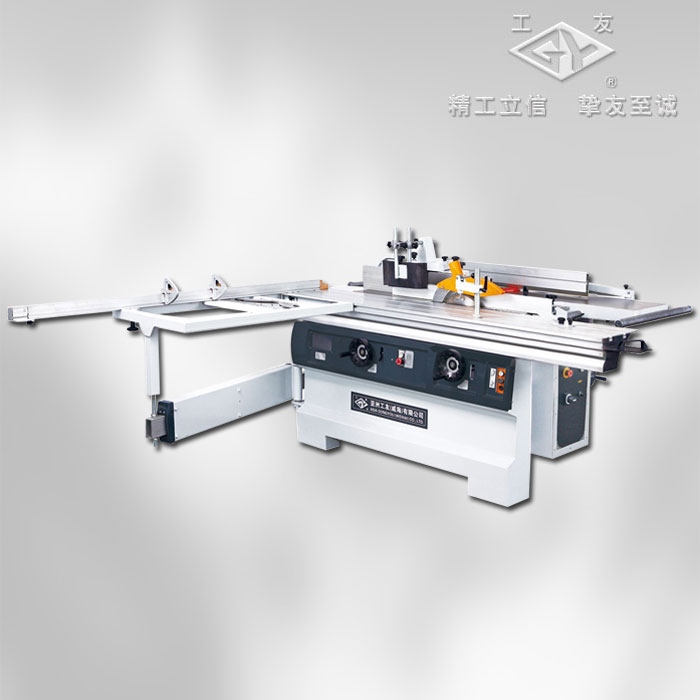

ML4520 Combined Universal Machine
ML4520 Combined Universal Machine
Technical Specification Unit ML4520
Max.sawing length mm 2250
Max.sawing thickness mm 80
Main saw motor power kW 3
Main spindle speed r/min 3800
Main spindle diameter mm ?30
Main saw blade dia. mm ?300
Sawblade tilt degree   45°~90°
Scoring saw spindle speed
r/min 8000
Scoring spindle dia. mm ?20
Scoring sawblade dia. mm ?100
Milling spindle stroke mm 200
Max. milling height mm 120
Milling spindle diameter mm ?35
Milling spindle motor power kW 3
Main spindle speed r/min
3500,6000,8000,10000
Max. planing width mm 400
Max. planing depth mm 5
Planing spindle speed r/min 5200
Planing spindle diameter mm ?87
Planing motor power kW 3
Planing thickness mm 6~210
Feeding speed m/min 6-12
Max. mortise depth mm 100
Max. mortise width mm 16
Table lengthways stroke mm 105
Table transverse stroke mm 160
Bit fitting diameter mm ?16
Mortising table size mm 470×230
Overall dimensions mm 2739×3636×1330
Net.weight kg
1100
