Products

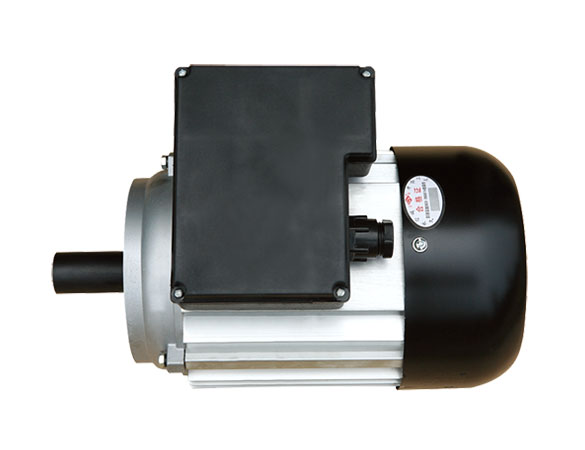

YY Series Capacitor-running Asynchronous Motor
YY Series Capacitor-running Asynchronous Motor
Summarization:
YY series motor is full-close rat-cage single-phase capacitor-start asynchronous motor self-cooled by fan,The motor is of the characteristic of simple structure,safe and reliable working,easy maintenance,excellent technique guideline and so on.
As ordinary-purpose motor, the series is used to indoor appilance、recorder、film bioscope、fan and so on.


Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt:220V
Rated Frequency:50Hz
Working System:S1
Insulation Grade:E或B(E OR B)
Protection Grade:IP44
Cooling Type:IC 411

Technical data

Type Rated power
(KW)
Rated Volt
(V)
Rated current
(V)
Rated speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked current
(A)
Locked-rotor torque/Rated torque Maximal torque/Rated torque Yawp dB(A)
Synchronous speed 3000r/min 2pole
YY7112 0.37 220 2.73 2800 67 0.92 10 0.35 1.7 75
YY7112 0.55 3.88 2800 70 0.92 15 0.35 75
YY8012 0.75 5.15 2800 72 0.92 20 0.33 75
YY8022 1.1 7.02 2800 75 0.95 30 0.33 78
YY90S-2 1.5 9.44 2800 76 0.95 45 0.30 83
YY90L-2 2.2 13.7 2800 77 0.95 65 0.30 83
Synchronous speed 1500r/min 4pole
YY7114 0.25 220 2.02 1400 61 0.92 7 0.35 1.7 65
YY7114 0.37 2.95 1400 62 0.92 10 0.35 70
YY8014 0.55 4.25 1400 64 0.92 15 0.35 70
YY8024 0.75 5.45 1400 68 0.92 20 0.32 70
YY90S-4 1.1 7.41 1400 71 0.95 30 0.32 73
YY90L-4 1.5 9.83 1400 73 0.95 45 0.30 78
Contact us
+86 0631 536 6696

No.8 Gongyou Road, Weihai City, Shandong Province, China
