Products

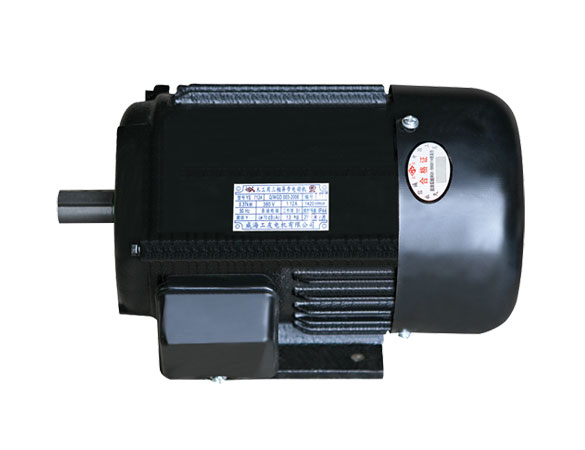

YS Series Three-phase Asynchronous Motor
YS Series Three-phase Asynchronous Motor
General Description:
YS series motor is afully enclosed micro three-phase asynchronous motor with the latest design. with features like simple structure, reliable performance,easy maintenance and achievement of technical-economic targets, the products have been widely used in the small-sized machine tool,medieal equipment and electonic instrument and househole electric appliances and so on. YS motor series have Protection Class of IP44, Insulation Class of E or B, Cooling Method of IC411.


Working condition:
Ambient operation temperature: It may vary with the changing weather but never exceeding 40℃.
Altitude: Not more than 1000m
Rated Frequency:50Hz
Rated Voltage:380/220V
Operation Mode: Consecutive(S1)
Wiring:Y/△

Technical data

Type power
(KW)
Voltage
(V)
current
(V)
speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked-rotor torque/Rated torque Locked current/Rated current Maximal torque/Rated torque
Synchronous speed 3000r/min 2pole
YS5612 0.09 380/220 0.33/0.57 2800 62 0.68 2.3 6.0 2.3
YS5622 0.12 380/220 0.39/0.67 2800 67 0.71 2.3 6.0
YS6312 0.18 380/220 0.59/1.02 2800 69 0.75 2.3 6.0
YS6322 0.25 380/220 0.7/1.21 2800 72 0.78 2.3 6.0
YS7112 0.37 380/220 0.96/1.66 2800 73.5 0.80 2.3 6.0
YS7122 0.55 380/220 1.35/2.34 2800 75.5 0.82 2.3 6.0
YS8012 0.75 380/220 1.75/3.04 2800 76.5 0.85 2.2 6.0
YS8022 1.1 380/220 2.55/4.42 2800 77 0.85 2.2 7.0
YS90S-2 1.5 380/220 3.44/5.95 2800 78 0.85 2.2 7.0
YS90L-2 2.2 380/220 4.83/8.36 2800 80.5 0.86 2.0 7.0
Synchronous speed 1500r/min 4pole
YS5614 0.06 380/220 0.29/0.49 1400 56 0.58 2.4 6.0 2.4
YS5624 0.09 380/220 0.39/0.67 1400 58 0.61 2.4 6.0
YS6314 0.12 380/220 0.44/0.76 1400 60 0.63 2.4 6.0
YS6324 0.18 380/220 0.6/1.04 1400 64 0.66 2.4 6.0
YS7114 0.25 380/220 0.83/1.44 1400 67 0.68 2.4 6.0
YS7124 0.37 380/220 1.12/1.95 1400 69.5 0.72 2.4 6.0
YS8014 0.55 380/220 1.56/2.7 1400 73.5 0.73 2.4 6.0
YS8024 0.75 380/220 2.01/3.49 1400 75.5 0.75 2.3 6.0
YS90S-4 1.1 380/220 2.75/4.76 1400 78 0.78 2.3 6.5
YS90L-4 1.5 380/220 3.65/6.32 1400 79 0.79 2.3 6.5
