Products

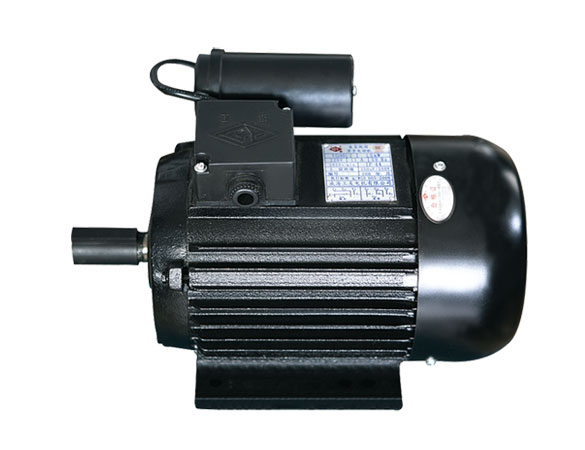

YC2Series Capacitor-start Asynchronous Motor
YC2Series Capacitor-start Asynchronous Motor
Summarization:
YC2 series motor is amodified product based on YC series, whose performance is identical or better than YC series. The products have been widely used in the small machine tool. pump, air compressor, agricultural machinery and foodstuff machinery and so on. YC2 series motor have Protection Class of IP44, Insulation Class of E or B, Cooling Method of IC411.


Working conditions:
1、Ambient operation temperature: It may vary with the changing weather but never exceeding 40℃.
2、Altitude: No more than 1000m
3、Rated frequency: 50Hz
4、Rated Voltage: 220V
5、Operation Mode: Consecutive(S1)

Technical data

Type Rated power
(KW)
Rated Volt
(V)
Rated current
(V)
Rated speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked current
(A)
Locked-rotor torque/Rated torque Maximal torque/Rated torque Yawp dB(A)
Synchronous speed 3000r/min 2pole
YC27112 0.37 220 3.36 2800 65 0.77 21 2.8 1.8 75
YC27122 0.55 4.65 2800 68 0.79 29 2.8 75
YC290S-2 1.1 9 2800 72 0.80 60 2.5 78
YC290S2-2 1.3 10 2800 73 0.80 70 2.5 78
YC290L-2 1.5 11 2800 74 0.81 80 2.5 83
YC290L2-2 1.8 13.5 2800 74 0.81 100 2.3 83
YC290L2T-2 2.0 15 2800 75 0.81 120 2.2 83
YC290L3-2 2.2 16.5 2800 75 0.81 120 2.2 83
Synchronous speed 1500r/min 4pole
YC27114 0.25 220 3.11 1400 58 0.63 15 2.8 1.8 65
YC27124 0.37 4.24 1400 62 0.64 21 2.5 70
YC290S-4 0.75 6.87 1400 68 0.73 37 2.5 70
YC290L-4 1.1 9.52 1400 71 0.74 60 2.5 73
