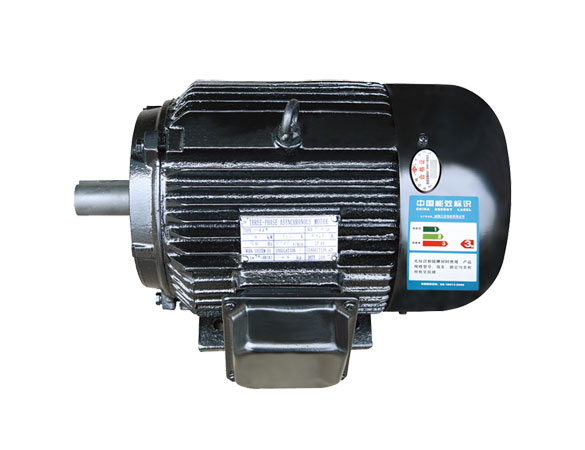

Y Series Three-phase Asynchronous Motor
Y Series Three-phase Asynchronous Motor
Summarization:
Y series motor is full-close rat-cage asynchronous motor self-cooled by fan, the series is designed uniformly. The series motor is of the characteristic of high efficiency, saving the power, large starting torque, small vibrancy, low yawp, great reliability. The power grade and installing dimension respond to the standard of IEC.
As ordinary-purpose motor, the series is used to drive various engine equipment without especial for performance.


Working condition:
The motor can work on the rated power continuously under the following condition:the altitude is no more than 1000m and the environmental air temperature is no more than +40℃.
Rated Volt:380V
Rated Frequency:50Hz
Working System:S1
Protection Grade:IP44
Insulation Grade:B
Cooling Type:IC 411
Wiring:Y(the output is 3KW or below), others are △.

Technical data

Type Rated power
Rated current
(V)
Rated speed
(r/min)
Efficient
(%)
Power factor
(cos¢)
Locked current/Rated current Locked-rotor torque/Rated torque Maximal torque/Rated torque Yawp dB(A) Weight(kg)
(KW) (HP)
Synchronous speed 3000r/min 2pole
Y80M1-2 0.75 1 1.8 2825 75 0.84 6.5 2.2 2.3 71 16
Y80M2-2 1.1 1.5 2.5 2825 77 0.86 7.0 2.2 2.3 71 17
Y90S-2 1.5 2 3.4 2840 78 0.85 7.0 2.2 2.3 75 22
Y90L-2 2.2 3 4.8 2840 80.5 0.86 7.0 2.2 2.3 75 25
Y100L-2 3 4 6.4 2880 82 0.87 7.0 2.2 2.3 79 33
Y112M-2 4 5.5 8.2 2890 85.5 0.87 7.0 2.2 2.3 79 45
Y132S1-2 5.5 7.5 11.1 2900 85.5 0.88 7.0 2.0 2.3 83 64
Y132S2-2 7.5 10 15 2900 86.2 0.88 7.0 2.0 2.3 83 70
Y160M1-2 11 15 21.8 2930 87.2 0.88 7.0 2.0 2.3 87 117
Y160M2-2 15 20 29.4 2930 88.2 0.88 7.0 2.0 2.3 87 125
Y160L-2 18.5 25 35.5 2930 89 0.89 7.0 2.0 2.2 87 147
Y180M-2 22 30 42.2 2940 89 0.89 7.0 2.0 2.2 92 180
Y200L1-2 30 40 56.9 2950 90 0.89 7.0 2.0 2.2 95 240
Y200L2-2 37 50 69.8 2950 90.5 0.89 7.0 2.0 2.2 95 255
Y225M-2 45 60 83.9 2970 91.5 0.89 7.0 2.0 2.2 97 309
Synchronous speed 1500r/min 4pole
Y80M1-4 0.55 0.75 1.5 1390 73 0.76 6.0 2.4 2.3 67 17
Y80M2-4 0.75 1 2 1390 74.5 0.76 6.0 2.3 2.3 67 18
Y90S-4 1.1 1.5 2.8 1400 78 0.78 6.5 2.3 2.3 67 22
Y90L-4 1.5 2 3.7 1400 79 0.79 6.5 2.3 2.3 67 27
Y100L1-4 2.2 3 5 1420 81 0.82 7.0 2.2 2.3 70 34
Y100L2-4 3 4 6.8 1420 82.5 0.81 7.0 2.2 2.3 70 38
Y112M-4 4 5.5 8.8 1440 84.5 0.82 7.0 2.2 2.3 74 43
Y132S-4 5.5 7.5 11.6 1440 85.5 0.84 7.0 2.2 2.3 78 68
Y132M-4 7.5 10 15.4 1440 87 0.85 7.0 2.2 2.3 78 81
Y160M-4 11 15 22.6 1460 88 0.84 7.0 2.2 2.3 82 123
Y160L-4 15 20 30.3 1460 88.5 0.85 7.0 2.2 2.3 82 144
Y180M-4 18.5 25 35.9 1470 91 0.86 7.0 2.0 2.2 82 182
Y180L-4 22 30 42.5 1470 91.5 0.86 7.0 2.0 2.2 82 190
Y200L-4 30 40 56.8 1470 92.2 0.87 7.0 2.0 2.2 84 270
Y225S-4 37 50 70.4 1480 91.8 0.87 7.0 1.9 2.2 84 284
Y225M-4 45 60 84.2 1480 92.3 0.88 7.0 1.9 2.2 84 320
Synchronous speed 1000r/min 6pole
Y90S-6 0.75 1 2.3 910 72.5 0.70 5.5 2.0 2.2 65 23
Y90L-6 1.1 1.5 3.2 910 73.5 0.72 5.5 2.0 2.2 66 25
Y100L-6 1.5 2 4 940 77.5 0.74 6.0 2.0 2.2 67 33
Y112M-6 2.2 3 5.6 940 80.5 0.74 6.0 2.0 2.2 67 45
Y132S-6 3 4 7.2 960 83 0.76 6.5 2.0 2.2 71 63
Y132M1-6 4 5.5 9.4 960 84 0.77 6.5 2.0 2.2 71 73
Y132M2-6 5.5 7.5 12.6 960 85.3 0.78 6.5 2.0 2.2 71 84
Y160M-6 7.5 10 17 970 86 0.78 6.5 2.0 2.0 75 119
Y160L-6 11 15 24.6 970 87 0.78 6.5 2.0 2.0 75 147
Y180L-6 15 20 31.4 970 89.5 0.81 6.5 1.8 2.0 78 195
Y200L1-6 18.5 25 37.7 970 89.8 0.83 6.5 1.8 2.0 78 220
Y200L2-6 22 30 44.6 970 90.2 0.83 6.5 1.8 2.0 78 250
Y225M-6 30 40 59.4 980 90.2 0.85 6.5 1.7 2.0 81 292
Synchronous speed 750r/min 8pole
Y132S-5 2.2 3 5.8 710 80.5 0.71 5.5 2.0 2.0 66 63
Y132M-8 3 4 7.7 710 82 0.72 5.5 2.0 2.0 66 79
Y160M1-8 4 5.5 9.9 720 84 0.73 6.0 2.0 2.0 69 118
Y160M2-8 5.5 7.5 13.3 720 85 0.74 6.0 2.0 2.0 69 119
Y160L-8 7.5 10 17.7 720 86 0.75 5.5 2.0 2.0 72 145
Y180L-8 11 15 24.8 730 87.5 0.77 6.0 1.7 2.0 72 184
Y200L-8 15 20 34.1 730 88 0.76 6.0 1.8 2.0 75 250
Y225S-8 18.5 25 41.3 730 89.5 0.76 6.0 1.7 2.0 75 266
Y225M-8 22 30 47.6 730 90 0.78 6.0 1.8 2.0 75 292
